RFI  |  SKU: CD8194-B

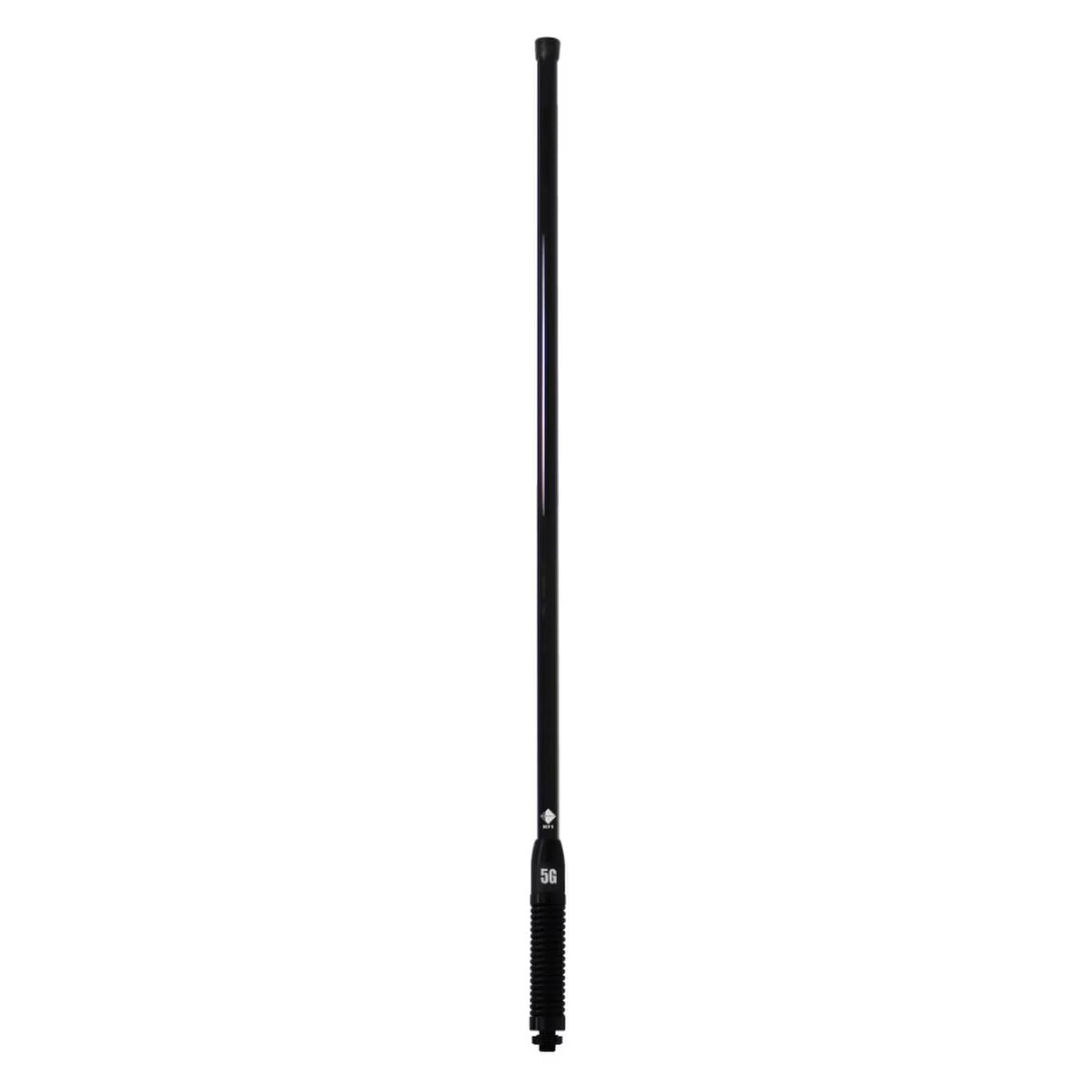

RFI CD8194 5.5dBi 4G/LTE/5G Black Vehicle Bull Bar Antenna - 65cm high

$140.00 $184.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We use MyPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)

RFI CD8194-B 5.5dBi 4G/LTE/5G Collinear Bull Bar Vehicle Antenna 698-3800MHz; 5Mtr cable terminated SMA male - Black 647mm


The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.

Key Features:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

Colour Black
Packaging Retail Hang Sell Bag
Whip Material Fibreglass
Cable And Connector 5m of 9006 low loss cable with SMA(M)
Frequency Range 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 5.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm Diameter Hole
Tuned bandwidth Full. No tuning required
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
Length [mm] 647mm
Brand RFI



Payment & Security

Payment methods

  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

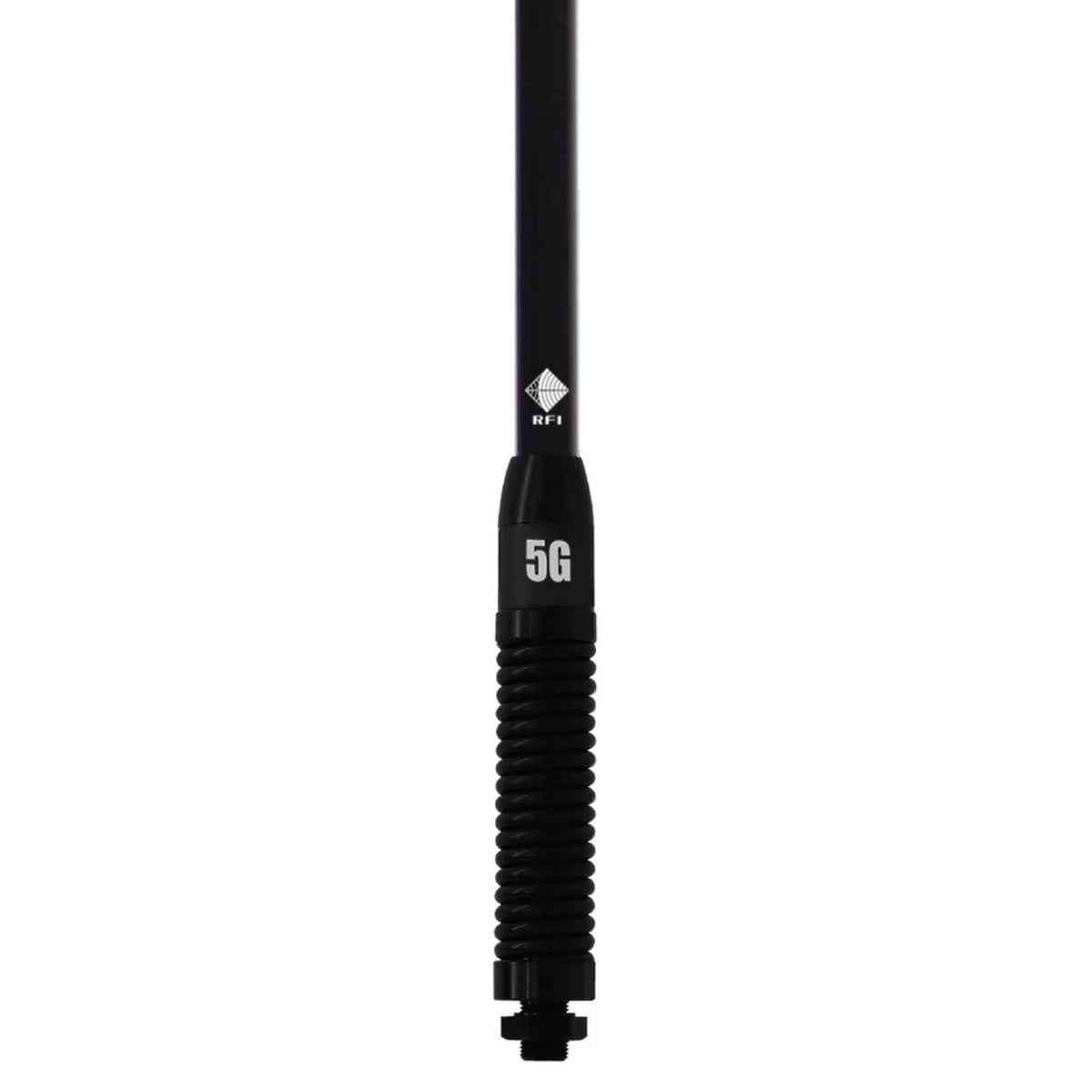

RFI CD8194-B 5G LTE 5.5DBI collinear vehicle bull bar antenna (698-3800MHZ) BLACK 647mm Close View
RFI

RFI CD8194 5.5dBi 4G/LTE/5G Black Vehicle Bull Bar Antenna - 65cm high

$140.00 $184.00
RFI CD8194-B 5.5dBi 4G/LTE/5G Collinear Bull Bar Vehicle Antenna 698-3800MHz; 5Mtr cable terminated SMA male - Black 647mm


The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.

Key Features:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

Colour Black
Packaging Retail Hang Sell Bag
Whip Material Fibreglass
Cable And Connector 5m of 9006 low loss cable with SMA(M)
Frequency Range 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 5.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm Diameter Hole
Tuned bandwidth Full. No tuning required
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
Length [mm] 647mm
Brand RFI
