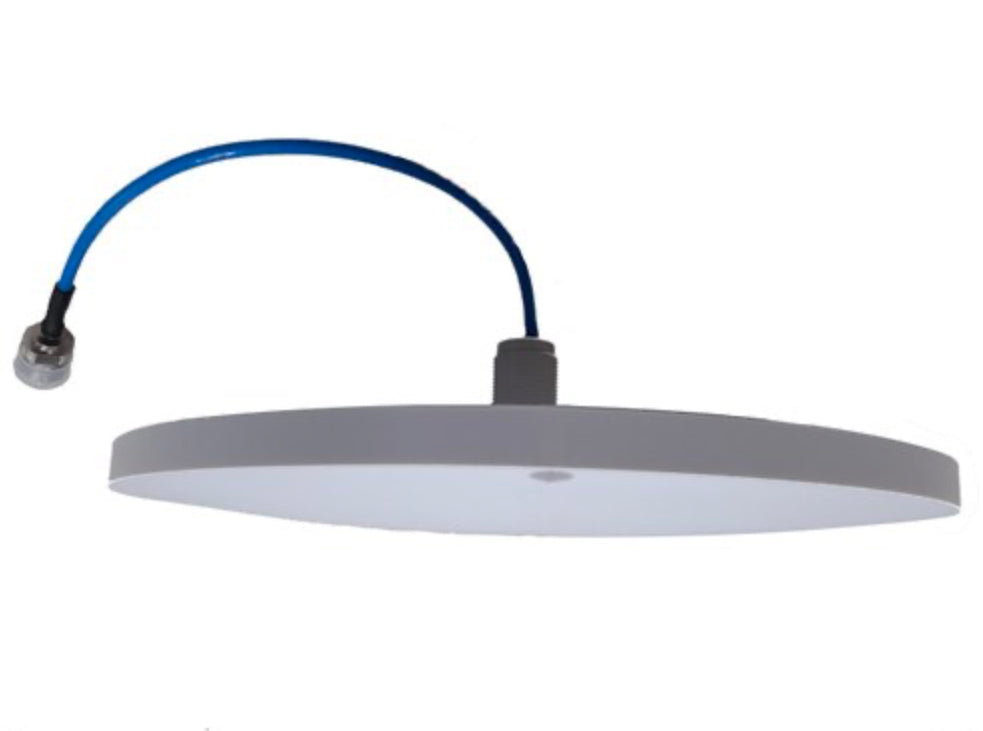

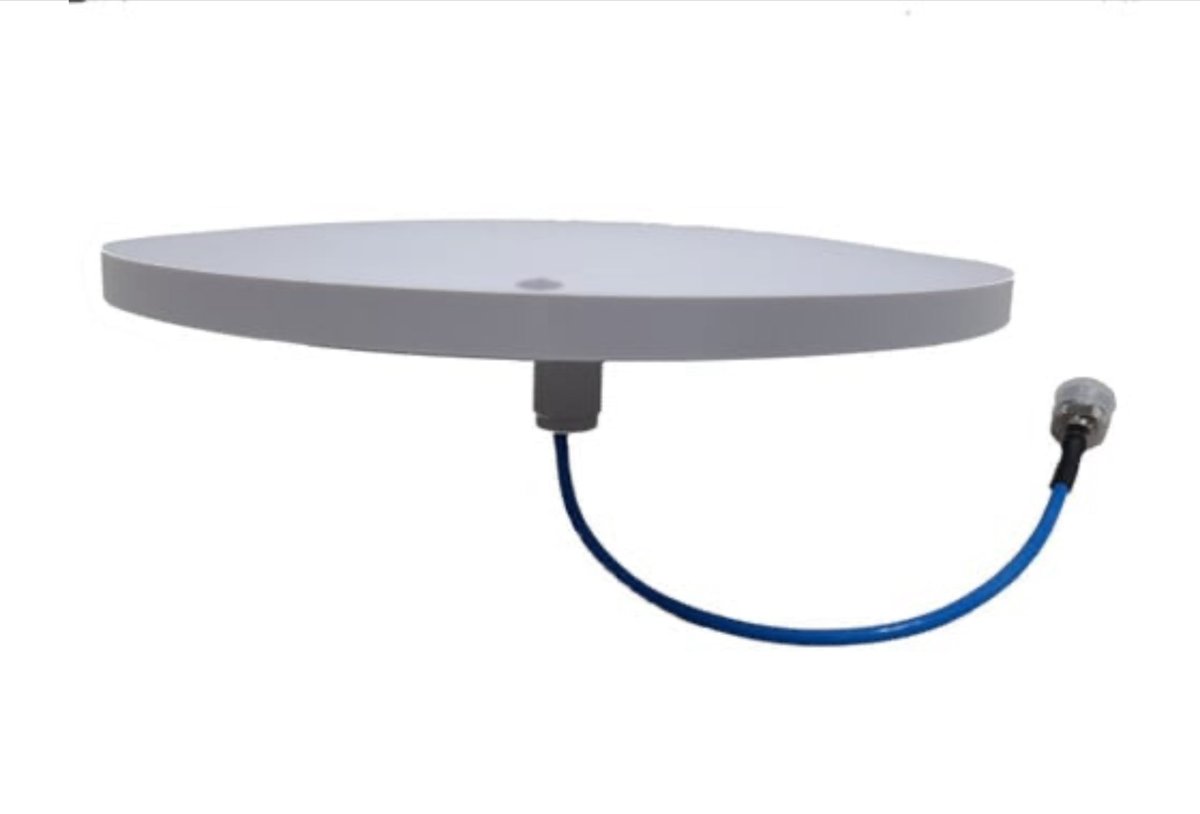

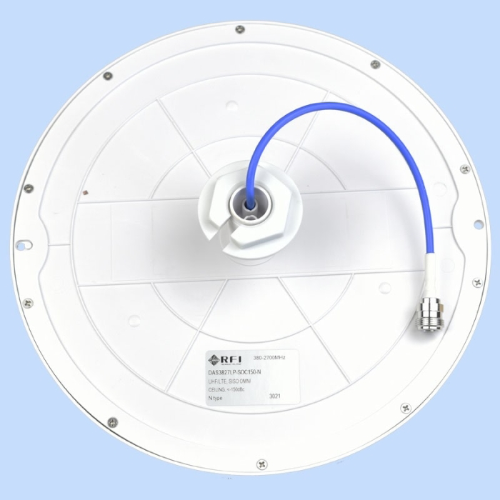

RFI DAS3827LP-SOC150-N 4G/LTE/5G Low Profile Omni-Directional Ceiling Antenna ; 300mm cable/tail N(F) terminated - 266mm Dia.
DAS3827LP-SDP150-N is a PIM rated, indoor SISO omni-directional panel antenna antenna, covering 4G & 5G Cellular bands, 380-520MHz, 689-960MHz & 1710-2700MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
RFI's Low profile UHF/LTE DAS antenna is a high performance, PIM rated DAS antenna, offering Omni directional coverage solutions to suit indoor UHF & LTE coverage in a low profile aesthetic. The multi-band capability covers both UHF and 4G bands including 380-520MHz, 690-960MHz & 1710-2700MHz, eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications.
Features:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -150dBc PIM performance
• 1 x 300mm tail terminated with N type female connector
Specification:
| Weight [kg] | 0.33 |
| Brand | RFI |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Vertical Beamwidth | 80 / 70 / 60 |
| Construction | White ABS |
| Termination | Single 300mm tail with N (F) connector |
| VSWR | <2.5:1 / <2.0:1 / <2.0:1 |
| Dimensions | 266(W) x 18(H) |
| Nominal Gain [dBi] | 2 / 2.2 / 4.5 |
| Power [W] | 50 |
| Frequency Range [MHz] | 1710 - 2700, 380 - 520, 698 - 960 |
| Connector | N(F) |
| Antenna Type | Omni |
| Antenna Application | DAS Antenna |
| Antenna Configuration | SISO |
