RFI  |  SKU: CD8195-WB

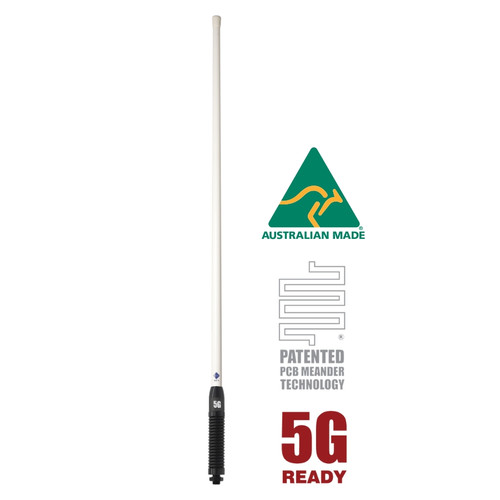

RFI CD8195-WB 6.5dBi 4G/LTE/5G White/Black Vehicle Bull Bar Antenna - 92cm high

$149.00 $185.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We use MyPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)

RFI CD8195-WB 6.5dBi 4G/LTE/5G Collinear Bull Bar Vehicle Antenna 698-3800MHz; 5Mtr cable terminated SMA male - White Radome/Black Spring 918mm high


The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.

Key Features:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.

- Ideal for new 5G/LTE networks with true multi-band coverage.

- High gain across all bands making it suiting fringe and rural applications.

Specifications
Colour White Radome/Black Spring
Packaging Retail Hang Sell Bag
Whip Material Fibreglass
Cable And Connector 5m RG58 low loss cable (9006) terminated with SMA male connector
Frequency Range 1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 6.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm diameter hole
Horizontal Beamwidth Omni-Directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Length [mm] 918mm
Operating Temperature Range [°C] -40 to +85
Brand RFI
Weight [kg] 0.82





Payment & Security

Payment methods

  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

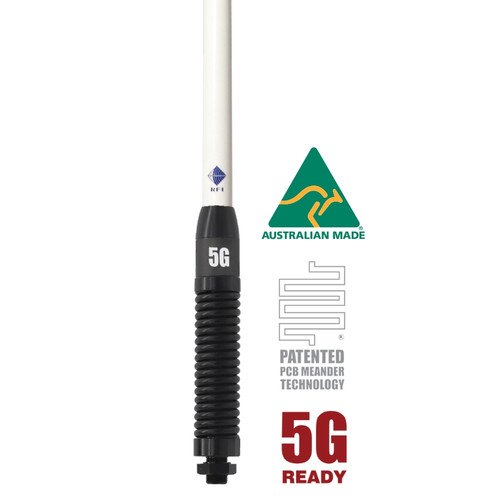

RFI CD8195-WB 5G LTE 6.5DBI collinear antenna (698-3800MHZ); 5M SMA(M)-white radome/black spring close view
