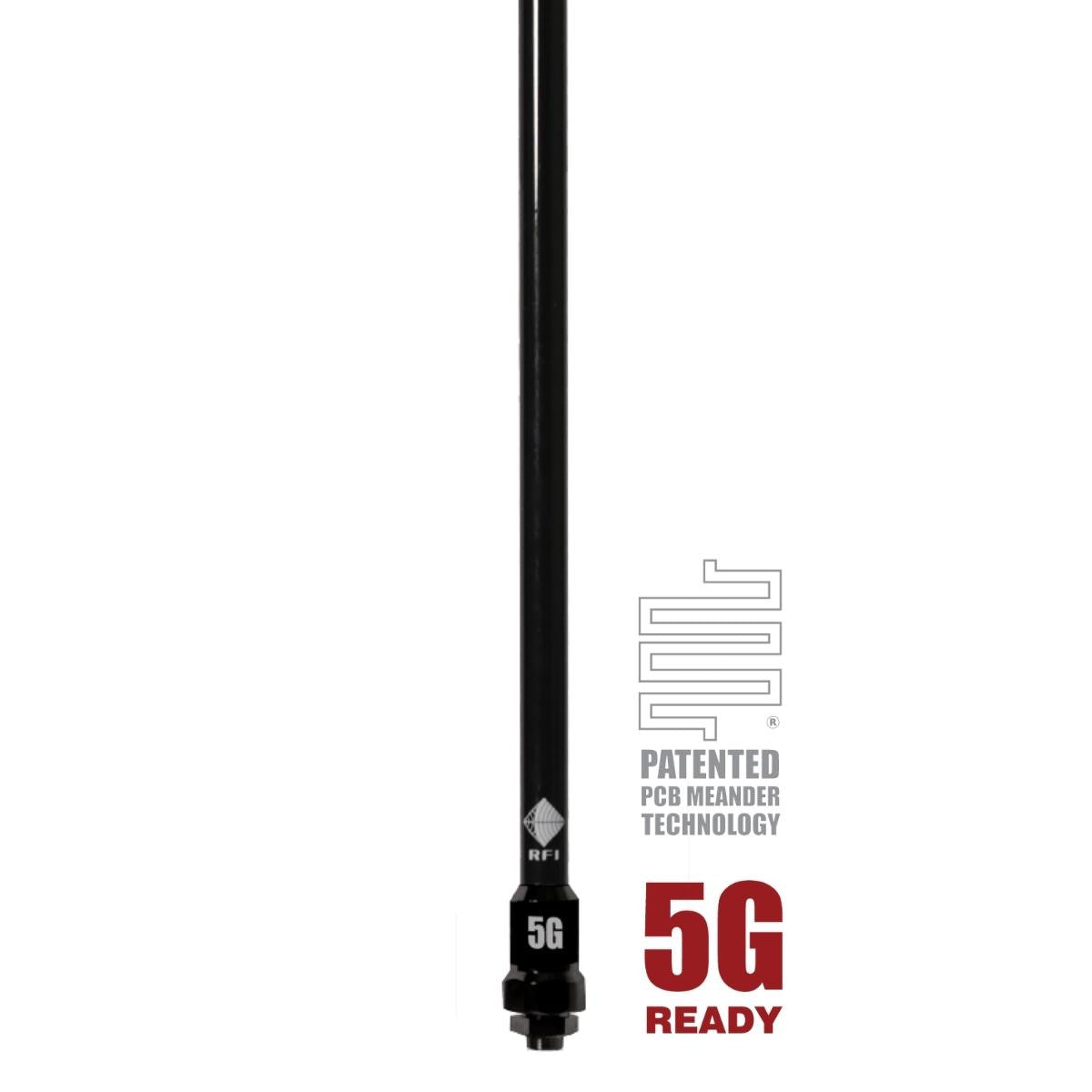

RFI CD8295 6.5dBi 4G/LTE/5G Cellular Stud Mount Base Antenna - Black 81cm high
RFI CD8295 6.5dBi 4G/LTE/5G Cellular Stud Mount Base Antenna - Black 81cm high is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We use MyPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)

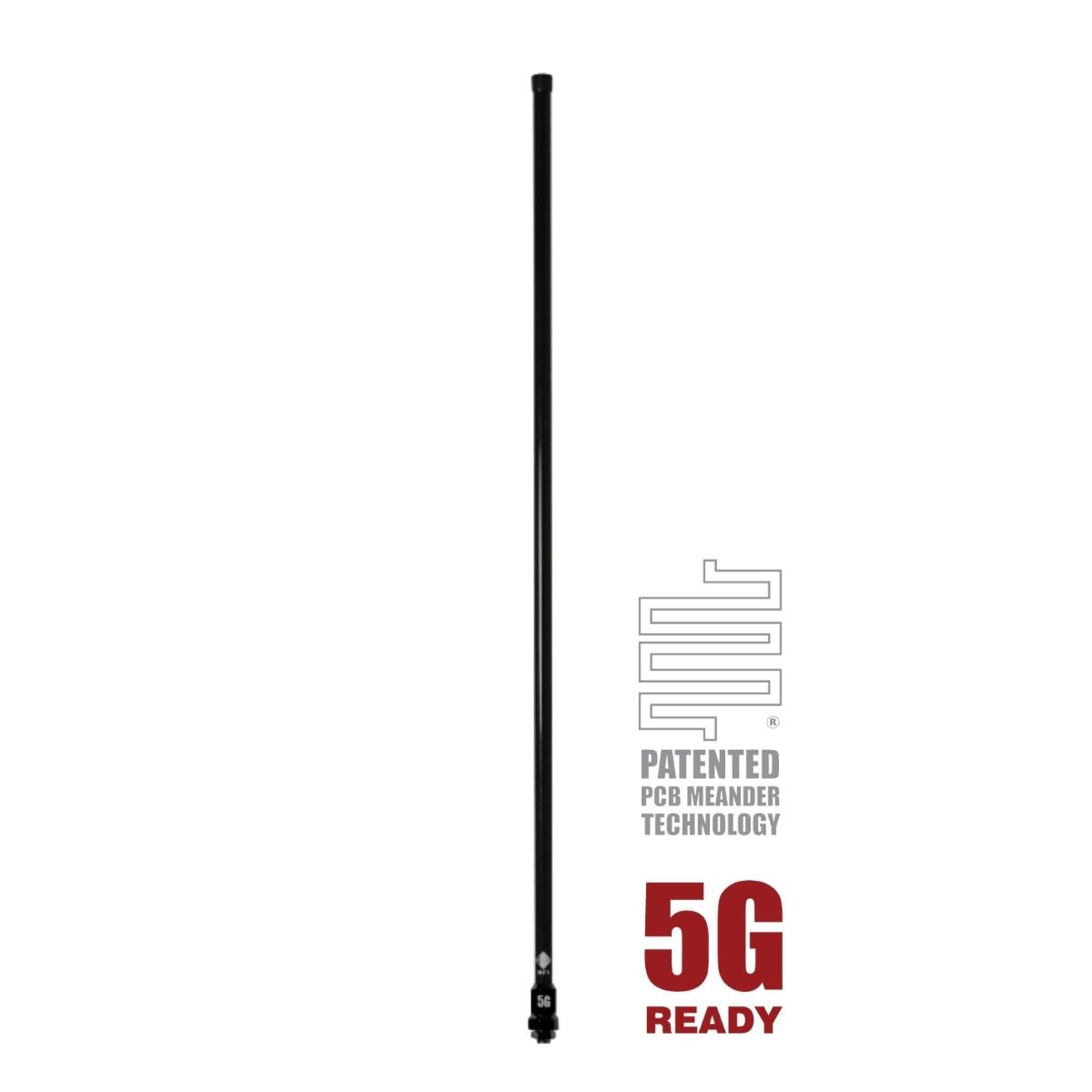

RFI CD8295 B 6.5bBi 4G/LTE/5G Collinear Stud Mount Base Antenna 698-3800MHz; 5Mtr cable terminated SMA male - Black 806mm high
The new CD8200 Series 5G LTE antennas cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) and now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CD8200 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The CD8200 series is designed for fixed mounting using the ½” 26TPI threaded stud & nut.
Key Features:
• Patented PCB based collinear design offering the ultimate in pattern and gain stability.
• Ideal for new 5G LTE networks with true multi-band coverage.
• High gain across all bands making it suiting fringe and rural applications.
Specifications
| Colour | Black |
| Cable Type | RG58 |
| Packaging | Poly Bag |
| Whip Material | Firbeglass |
| Cable And Connector | 5m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170, 2300 - 2700, 3400 - 3800, 698-960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm hole |
| Tuned bandwidth | Full. |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Operating Temperature Range [°C] | -45 to +85 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 806 |
-
