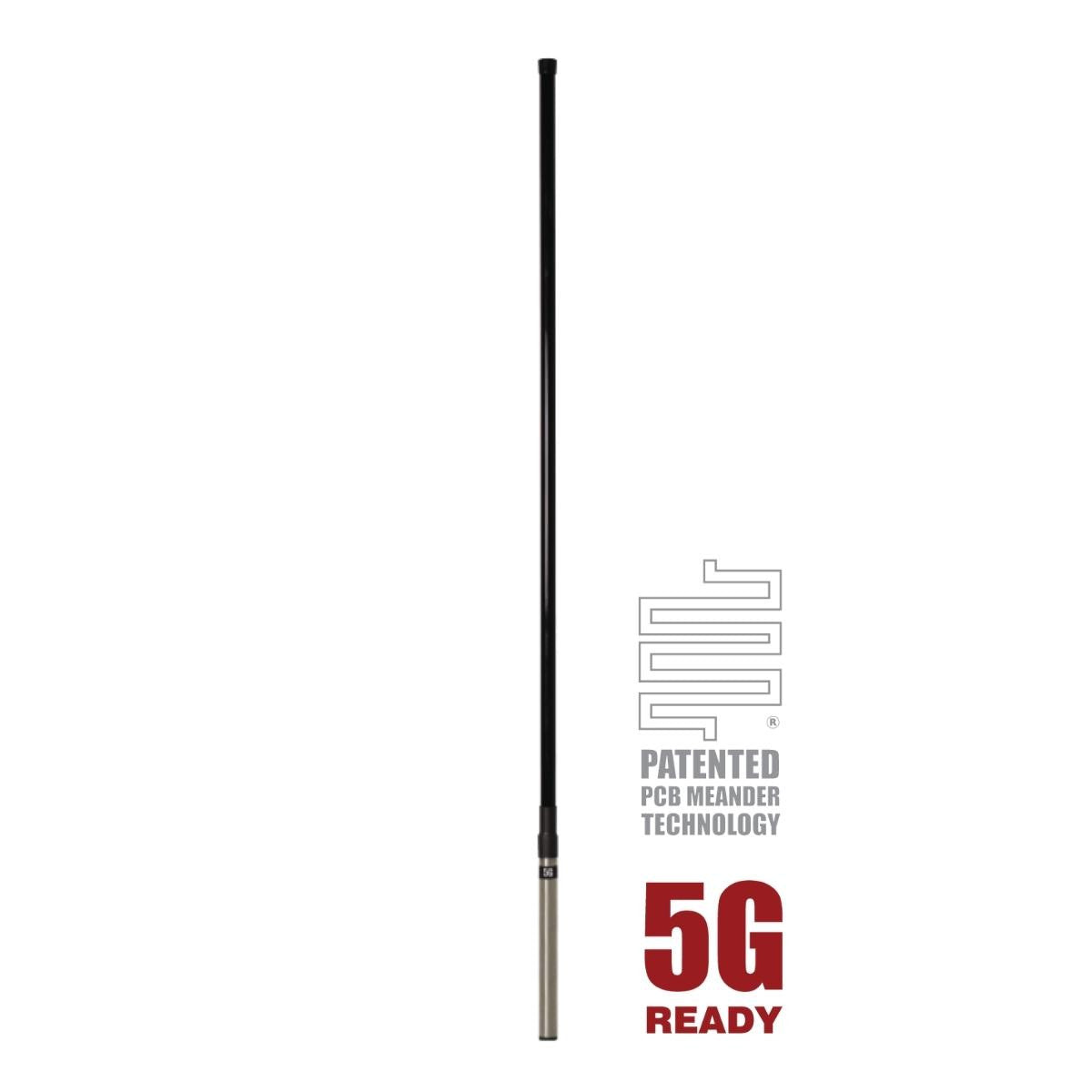

RFI COL8199 8.5dBi 4G/LTE/5G Cellular Base Antenna - Black 173cm high
RFI COL8199 8.5dBi 4G/LTE/5G Cellular Base Antenna - Black 173cm high is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We use MyPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)
RFI COL8199-B 8.5bBi 4G/LTE/5G Cellular Collinear Base Antenna 698-3800MHz; 10Mtr cable terminated SMA male - Black 1730mm high
The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

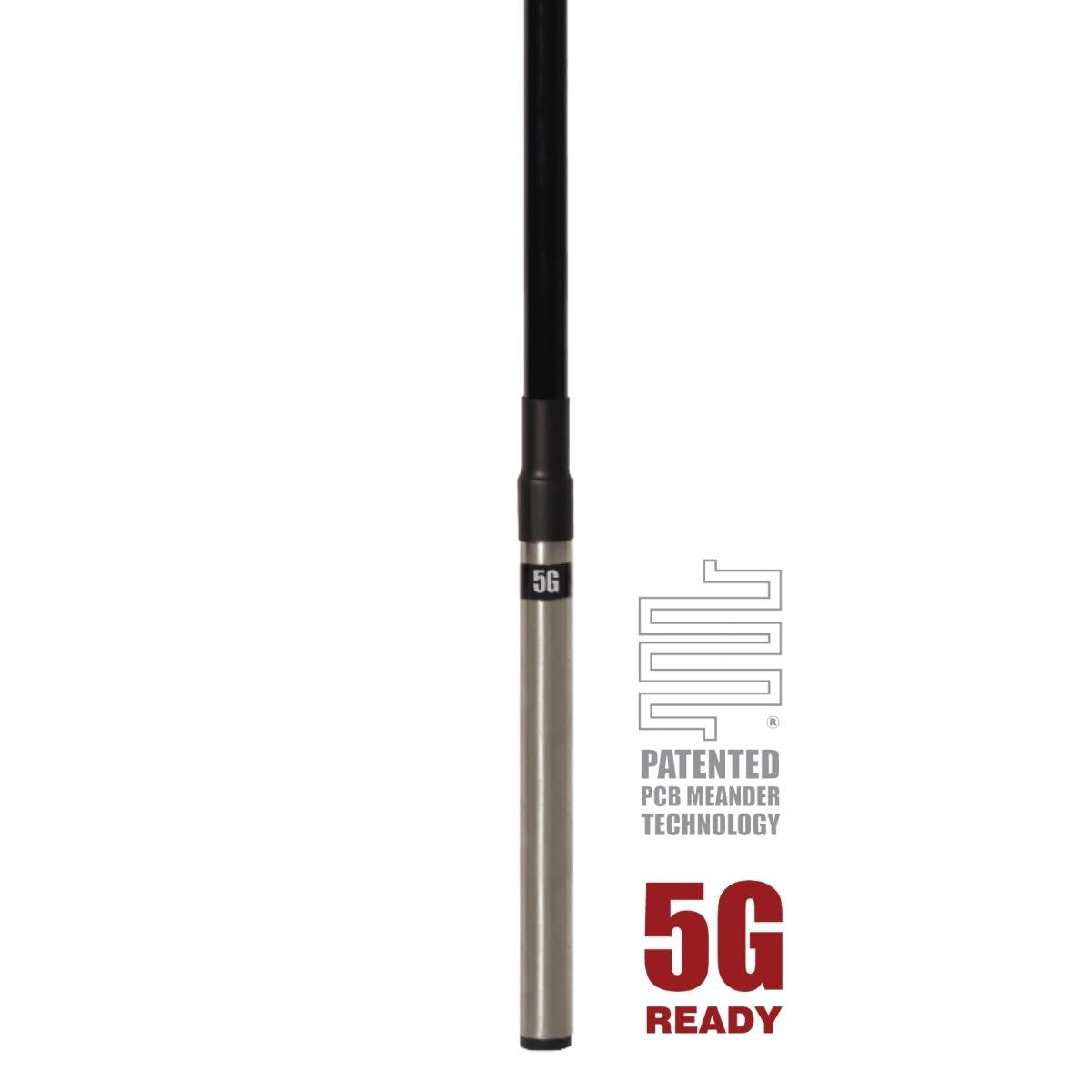

COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.
Key Features
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Height [mm] | 1730 |
| Brand | RFI |
| IP Rating | IP65 |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Horizontal Beamwidth | Omni-directional |
| Vertical Beamwidth | 10 / 30 / 20 / 15 |
| Tuned Bandwidth | Full |
| Construction | Black radome, 200 x 19mm S/S mounting tube |
| Mounting Area | 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied) |
| Radome Diameter Mm | 15.6 |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 8.5 / 4.5 / 5.5 / 6.5 |
| Power [W] | 10 |
| Frequency Range [MHz] | 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960 |
| Cable And Connector | 10m of RG58 (9006) low loss cable terminated with SMA male connector |
| Colour | Black |
| Technology Type | 5GNR, LTE |
| Antenna Type | Omni |
| Antenna Application | Terminal Antenna |
| Antenna Features | Multi Band Capable, Omnidirectional |
| Frequency Band | Multi-Band 700 to 3800 |
| Cable Length (M) | 10 |
| Antenna Configuration | SISO |
Application:
-
This multi-purpose antenna is most often used as a high quality roof mounted antenna to improve poor signal inside the home
-
It is also commonly used as a robust/durable marine antenna for using your mobile phone or wireless broadband offshore
-
The COL8199 is a brilliant solution to slow wireless broadband or poor phone reception in suburban areas, or anywhere where signal is poor inside but fine outside the house
-
By roof mounting an antenna takes advantage of this naturally stronger signal and passes it down it's 10m cable to be connected to your phone or modem
-
Supplied with 10m RG-58 cabling, 2x Stainless steel hose clamps
Downloads / Further Information:
8100 Series Specifications Matrix
CD8200 & COL8100 Installation Sheet
-
