RFI DAS6938-SDP150-N Directional Panel Antenna; 10m Cable SMA
RFI DAS6938-SDP150-N Directional Panel Antenna; 10m Cable SMA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We use MyPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)

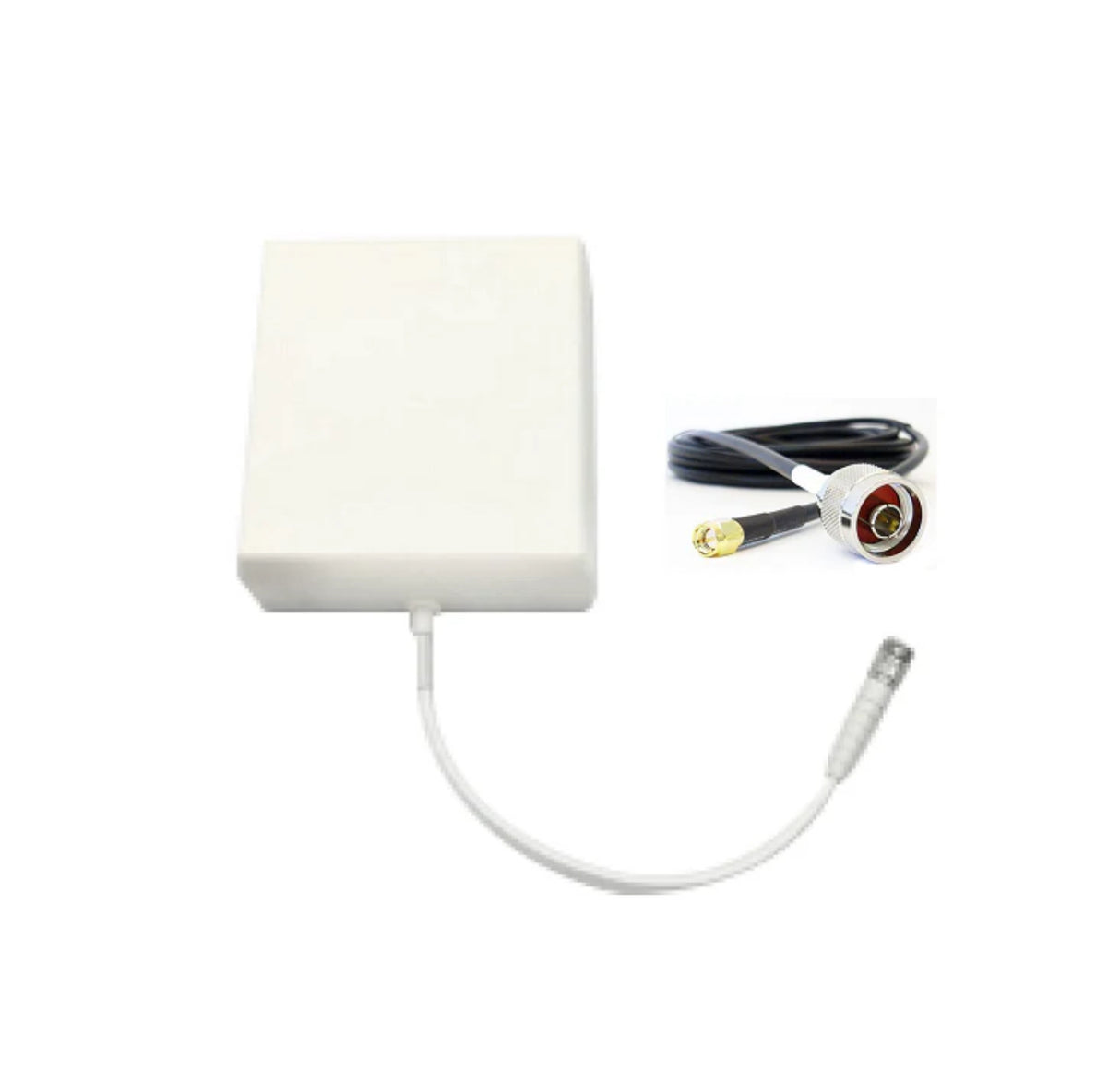

RFI DAS6938-SDP150-N Low PIM SISO Directional Panel Antenna 698-960MHz & 1710-2700Mhz & 3300-3800Mhz; 10m cable terminated SMA
The DAS6938-SDP150-N is a PIM rated, indoor/outdoor SISO directional panel antenna, covering 4G &5G Cellular bands, 689-960 MHz, 1710-2700MHz & 3300-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
RFI's Low PIM DAS range is a high-performance, PIM-rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor Omni directional solutions to suit indoor, and outdoor requirements, with the optional low-profile aesthetic. The multi-band capability of each offering covers both 4G and 5G bands including 690-960MHz, 1710-2700MHz & 3300-3800MHz, therefore eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications.
Key Features:
• Low Profile compact form factor
• IP55 rated
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent - 150dBc PIM performance
• 1 x 300mm tail terminated with N-type female connector
* This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit (SKU: 9207N-10)
Specifications
| Weight [kg] | 0.33 |
| Brand | RFI |
| Horizontal Beamwidth | 90 / 80 / 70 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Vertical Beamwidth | 60 / 55 / 50 |
| Construction | UV resistant White ASA, IP55 |
| Termination | Single 300mm tail with N (F) connector |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Dimensions | 165(L) x 155(W) x 50(H) |
| Nominal Gain [dBi] | 5/06/2007 |
| Power [W] | 50 |
| Frequency Range [MHz] | 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960 |
| Connector | N(F) |
| Technology Type | LTE, UMTS |
| Antenna Type | Directional Panel |
| Antenna Application | DAS Antenna |
| Antenna Features | PIM Rated |
| Frequency Band | Multi-Band 700 to 3800 |
| Antenna Configuration | SISO |
Documentation
DAS6938-SOC150-N Specifications
-
prod.spec
