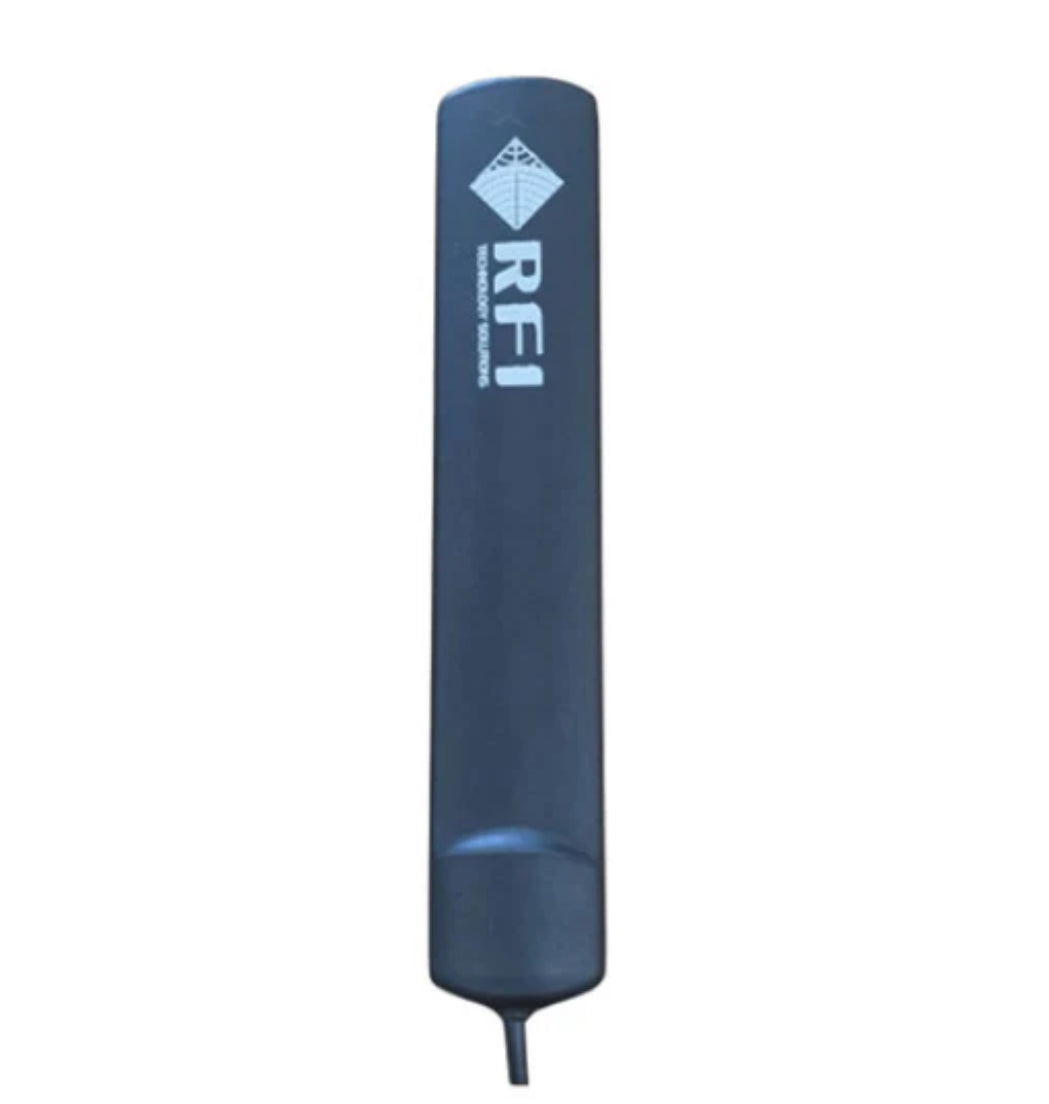

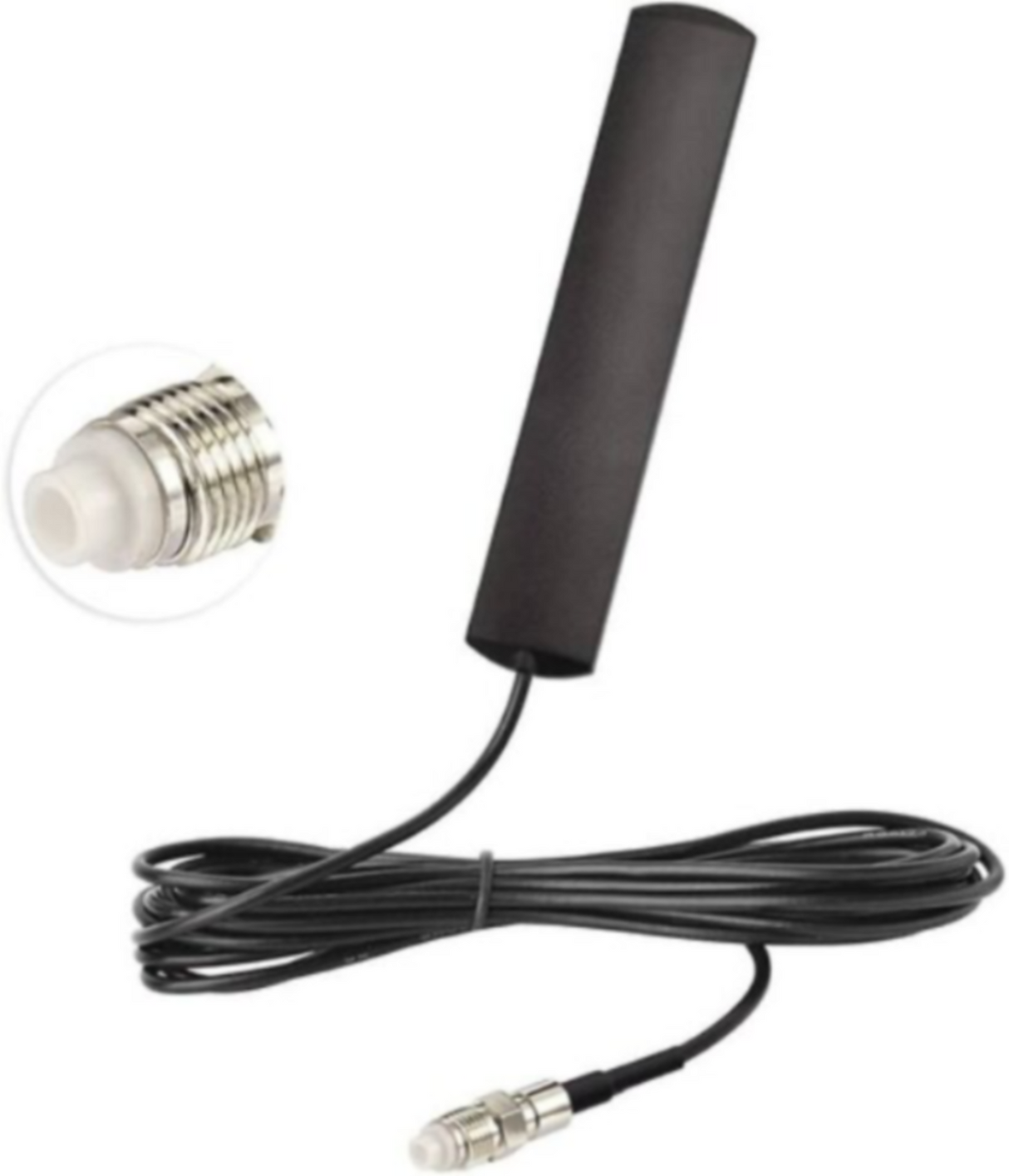

RFI T5-3M-FME 4G/LTE/5G Internal Glass Mount Antenna with 3m cable terminated FME(F)
RFI T5-3M-FME 4G/LTE/5G Internal Glass Mount Antenna with 3m cable terminated FME(F) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We use MyPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)
RFI T5-3M-FME 4G/LTE/5G Internal Glass Mount Antenna (617-5925MHz); 3m Cable terminated with FME (F) connection
The T5 series antennas are low cost and easy to install through the adhesive system making them an ideal solution for a variety of applications from industrial to consumer. It’s the perfect internal (Server) antenna for your Cel-Fi vehicle booster.
As a ground plane independent adhesive mount wideband antenna RFI’s T5 series antenna offers flexible application and installation. Covering the 617MHz to 5925MHz frequencies the T5 antenna can be used with a variety of 5G, 4G, 3G, NB-IoT, and CAT-M1 devices.
The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibility. In addition, this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.
| Network Compatibility | |
|---|---|
| LTE 700MHz |  |
| LTE 800MHz | |
| 3G 850MHz | |
| LTE 900MHz | |
| LTE 1700MHz | |
| LTE 1800MHz | |
| LTE 1900MHz | |
| LTE 2100MHz | |
| LTE 2300MHz | |
| LTE 2600MHz | |
| LTE 2700MHz | |
| 5G 3500MHz |
|
Key Features:
•Wideband frequency range; 617 to 5925MHz
•Adhesive mount
•Ground Plane Independent
•Compact size: 116 x 22 x 6.7mm
| Cable And Connector | 3m LL100, FME Female |
| Tuning | Supplied pre-tuned |
|
Frequency MHz Band MHz |
617-960 / 1427-2690 / 3300-5000 / 5150-5925MHz 698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Connector | FME(F) |
| Nominal impedance | 50 |
| Power w | 25 |
| Nominal Gain Dbi | 3.2 / 3.6 / 1.0 / 1.6 |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Termination | FME (Female) |
| Tuned bandwidth | Full |
| Length [mm] | 116 |
| Width [mm] | 22 |
| Brand | RFI |
Documentation
-
prod.spec
