RFI  |  SKU: CD34-71-00

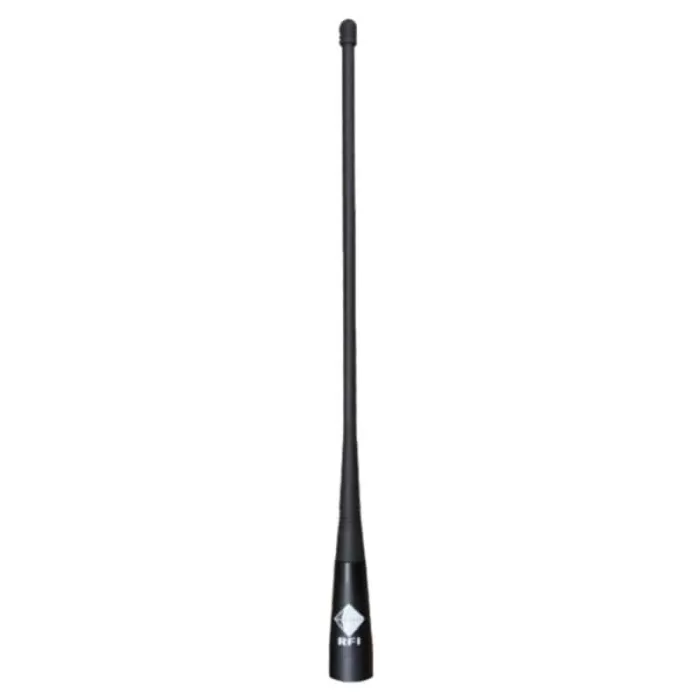

RFI CD34-71-00 4dBi UHF / CB 477Mhz Antenna Whip-Only 33cm high

$39.40 $45.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We use MyPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)

RFI CD34-71-00 UHF CB 477Mhz 4dBi Mopole Ground Independant Antenna Whip Only - 330mm high


The CD34 Series Mopole antenna is specifically designed to be used in a variety of mounting positions such as a vehicle mirror, gutter or roof rack. Mounting in such positions, the CD34 is the ideal substitute for an antenna which would normally need to be mounted in the centre of a metal roof to obtain maximum efficiency.

The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.

This CD34-71-00 is the (330mm) whip only and screws onto a UHF / MBC / SO239 connectors / base.

Features:
  • Ground plane independent design allows installation in almost any location
  • Robust UV stable base & flexible whip
  • 330mm
  • Screws onto UHF / MBC / SO239 connector
  • Rugged antenna suitable for most any application
Specifications:
Brand RFI
Frequency MHz 476 - 477
Tuned Bandwidth Full. No tuning required
VSWR <1.5:1
Nominal Gain [dBi] 4
Power [W] 50
Frequency Range [MHz] 476 - 477
Band 477MHz
Tuning Supplied pre-tuned
Whip Length mm 330mm
Whip Material Stainless Steel braid over moulded with UV resistant TPU
Antenna Type Omni
Antenna Application Vehicle Antenna
Frequency Band UHF 380-520 MHz
Antenna Configuration SISO
