RFI CDR5000-B 5dBi UHF / CB 477Mhz Black Q-Fit® Vehicle Bull Bar Antenna 94cm high
RFI CDR5000-B 5dBi UHF / CB 477Mhz Black Q-Fit® Vehicle Bull Bar Antenna 94cm high is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We use MyPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)

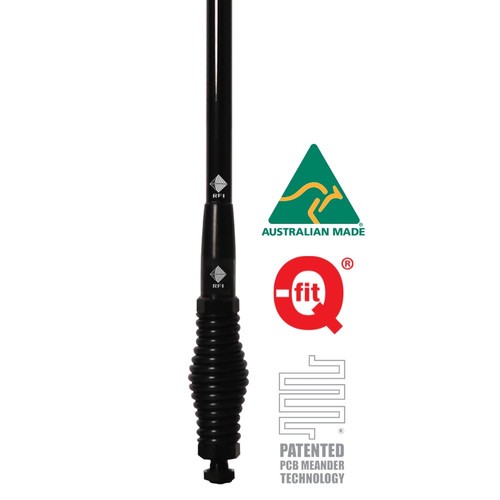

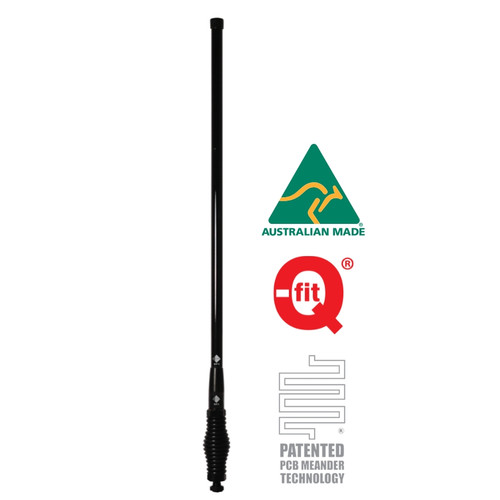

RFI CDR5000-B 5dBi Black UHF / CB 477Mhz Black Q-Fit® Collinear Vehicle Bull Bar Antenna; 5Mtr cable terminated FME (F) includes a UHF (M) adapter - Black 935mm
The CRD5000 series is a light weight version of our CDQ5000 which is ideal for mounting on guards, mirrors or bull bars. It utilises our Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability and employs our Q-Fit® removable whip system.
The antennas we supplied with our medium duty spring assembly which included 5 metres of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor.
CDR5000-B Features:
• Patented PCB based Meander™ collinear design offering the ultimate performance & robustness.
• 5 dBi gain across the full 477 MHz UHF CB band.
• Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security
• Totally ground plane independent
| Brand | RFI |
| Mounting | 13mm threaded stud |
| Length [mm] | 930 |
| Frequency MHz | 477 |
| Tuned Bandwidth | Full. No tuning required |
| Radome Diameter Mm | 16 |
| Termination | FME female & supplied with UHF adaptor |
| VSWR | <1.5:1 |
| Nominal Gain [dBi] | 5 |
| Power [W] | 25 |
| Frequency Range [MHz] | 470 - 490 |
| Connector | FME(F), UHF(M) |
| Band | 477MHz |
| Tuning | Supplied pre-tuned |
| Cable And Connector | 5.0m 9006 supplied with FME-101 connector terminated and UHF adapter supplied |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Antenna Type | Omni |
| Antenna Application | Vehicle Antenna |
| Frequency Band | UHF 380-520 MHz |
| Antenna Configuration | SISO |
-
prod.spec
