RFI CDQ5000 Antenna Black - 5dBi UHF / CB 477Mhz Q-Fit® Vehicle Bull Bar Antenna - 98cm high
RFI CDQ5000 Antenna Black - 5dBi UHF / CB 477Mhz Q-Fit® Vehicle Bull Bar Antenna - 98cm high is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We use MyPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)

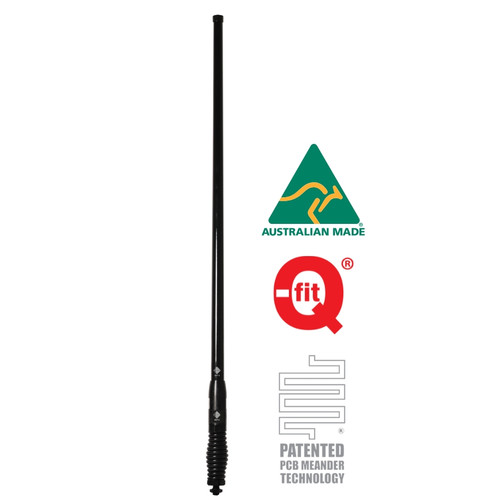

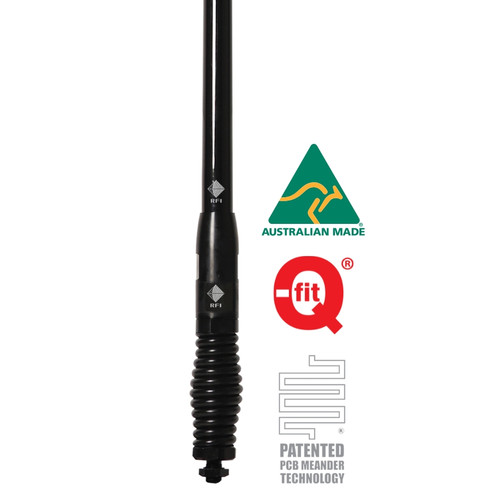

RFI CDQ5000-B 5dBi Black UHF / CB 477Mhz Black Q-Fit® Collinear Vehicle Bull Bar Antenna; 5Mtr cable terminated FME (F) includes a UHF (M) adapter - Black 976mm
The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features CDQ5000-B:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specifications:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar |
| Radome Diameter mm | 22.5 - 15.6 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 976mm |
| Mounting |
Threaded Stud |
CDQ5000 Technical Specifications
-
prod.spec
